Brazing Materials

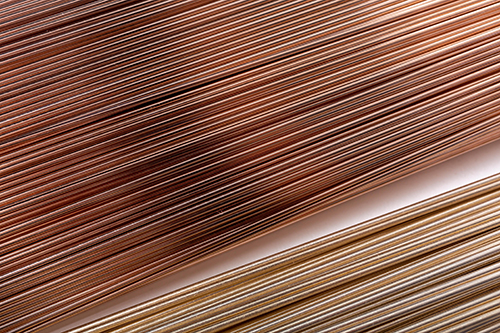

Phosphorus Copper Brazing Filler (BCuP)

Phosphorus Copper Brazing Filler (BCuP) is mainly used to bond the base material of copper and copper alloys and is also used for brazing Tungsten and Molybdenum. In the case of Phosphorus Copper Brazing Filler (BCuP), it is not necessary to use a separate FLUX because of phosphorus (P) that has self-fluxing properties. In addition to the standard Phosphorus Copper Brazing Filler (BCuP) specified by KS and JIS, YOOCHNAG METAL IND. is producing bar-type and ring-type of Phosphorus Copper Brazing Filler (BCuP) that reduces cost and supplements and improves material properties.

Phosphorus Copper Brazing Filler

YCM Code KS & JIS Component (%) Working temperature (℃)
COSIL-1 BCuP-1 Ag : 0, P, Cu 785~925
COSIL-2 BCuP-2 Ag : 0, P, Cu 735~840
COSIL-3 BCuP-3 Ag : 4.7~6.3, P, Cu 705~840
COSIL-4 BCuP-4 Ag : 4.7~6.3, P, Cu 705~815
COSIL-5 BCuP-5 Ag : 14.5~15.5, P, Cu 705~840

Non-standard Phosphorus Copper Brazing Filler (BCuP)

YCM Code Component (%) Working temperature (℃)
COSIL-08 Ag : 0, P, Cu 710~830
COSIL-10 Ag : 1.0, P, Cu 705~840
COSIL-15 Ag : 1.5, P, Cu 705~840
COSIL-20 Ag : 2.0, P, Cu 705~840
COSIL-20D Ag : 2.0, P, Cu 660~750
COSIL-30 Ag : 3.0, P, Cu 705~840
COSIL-200 Ag : 20, P, Cu 705~840

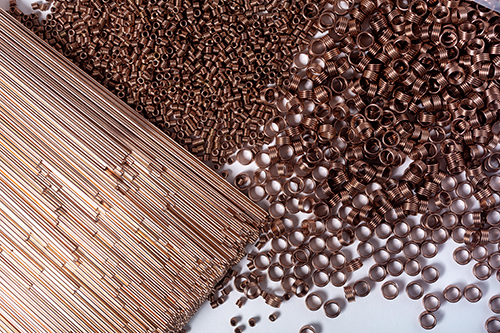

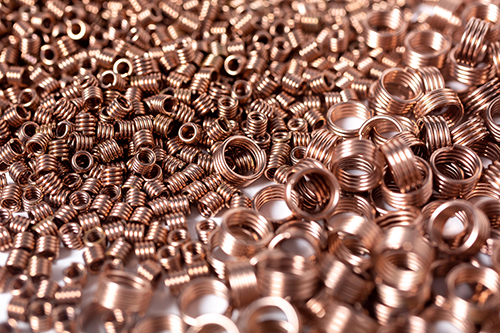

Phosphorus Copper Brazing Filler (BCuP) Ring

YCM Code Component (%) Working temperature (℃)
COSIL-20 Ring Ag : 2.0, P, Cu 705~840
COSIL-30 Ring Ag : 3.0, P, Cu 705~840
